Creating Moneying Punches (In Progress)

*Might just nix this section and move the relevant info into foundational tools

Each step of the punch creation process begins with a list of tools required. This section goes into detail on the types of tools that need special consideration when purchasing, along with my personal thoughts and recommendations

Files

Torches

Metal cutting tool (ex. bolt cutters, angle grinder, Dremel with cutting wheels, hacksaw, chop saw)
Metal grinding/shaping tool (ex. bench grinder, belt sander, hand files)
Workshop torch (propane or Map-Pro)
- I recommend getting a ___ attachment like the one shown in the picture. It is less strain on the hand to hold and allows you to manipulate the direction of the flame while keeping the fuel canister upright (angling the canister too far can disrupt the flow of fuel and cause the flame to go out).
Tongs or pliers (something that can handle hot metal)
Fire brick or anvil (heat-resistant surface)

Tools Required

Metal cutting tool (ex. bolt cutters, angle grinder, Dremel with cutting wheels, hacksaw, chop saw)
Metal grinding/shaping tool (ex. bench grinder, belt sander, hand files)
Workshop torch (propane or Map-Pro)
Tongs or pliers (something that can handle hot metal)
Fire brick or anvil (heat-resistant surface)

Choosing Punch Material

Coin dies in the SCA are generally made from cold-rolled steel, and in order for your punches to stamp an image on the die face, they must be made of hardened steel.

Not all types of steel are able to be hardened, it must be a high-carbon steel, so when shopping for punch stock be sure to keep a lookout for the keywords. Anything that is sold as “high-carbon steel” “hardened steel”, “spring steel”, or “tool steel” should be sufficient.

For the moneyer that is just starting out or working on a budget, your cheapest and most readily available sources of high-carbon steel (that won’t require too much reworking to make into punches) are:

Concrete/masonry nails (you’ll need ones at least 2.5″ long)
Old allen wrenches (check at pawn shops and thrift stores)
Nail punches (used to drive in finishing nails without damaging the surface)
Letter stamping sets for marking tools (HERE is one sold by Harbor Freight)

I personally recommend buying a box of masonry nails when you are first starting out, as there will be some trial and error. Once you have a handle on things, get yourself the letter stamping sets to use as your primary punches. They have a good diameter (which I go into the importance of shortly), are square cut so they won’t roll away, and fit neatly into the original storage case for easy organization.

As you start making more and more punches, especially branching out into specialty punches and very fine designs, you may find yourself wanting more control of the overall punch size, or needing to make a lot of punches and buying that many lettering sets to be impractical. If you reach that point, then I recommend using K&S metals heavy-gauge music wire. It is available in many diameters, and is a pretty good value (I can get 14 punches out of a 3 foot piece).

You can purchase bundles directly from K&S HERE, or individual lengths from Blick Art Supplies HERE. I recommend the #508 wire (5/32″) for your basic punches and any designs up to 3mm long, and #510 wire (7/32″) for full letters and any designs 3mm or longer.

Regardless of your steel source, the diameter of your punch stock should be at least 4mm at its thinnest point, though at least 6mm is preferred. Anything thinner than 4mm will have a tendency to crack or bend (depending on how thoroughly it was hardened) under regular use, and even 4mm will slowly deform over time. For punches that are expected to be used a lot, go with 6mm.

Parzival’s Pointers – Sizing Punch Stock to Designs

An important lesson I learned early in my A&S journey is that for any sort of impact-based impressioning, be it metal punches, coin dies, or leather stamps, the body of your punch/die/stamp should be at least 25% larger than the design itself.

The reasoning behind this is that the closer your design is in size to the size of the striking end, then the more accurate you need to be with each strike. If your hammer comes down at an angle or doesn’t hit the end directly on-center, it is likely you won’t get a clean impression. When the force of impact is directed into a smaller area, there is more leeway on the angle and precision of your strike before it becomes noticible.

I don’t understand the specific physics enough to explain in detail, but I can speak from experience. The one time I did a coin where the coins were the same diameter as the dies, maybe 1 in 5 of my strikes were clear enough to use.

In short, unless you can guarantee a perfectly centered and evenly distributed application of force (such as with a hydraulic press), look for punch stock that’s a little larger than the actual designs you want to be punching.

Shaping Punch Blanks

Once your metal has been chosen, it needs to be made into the general shape of a punch (a “punch blank”) before you can start shaping a specific design.

Parzival’s Pointers – Punch Lengths

When cutting punch stock, I recommend aiming for a final punch length of 2″-2.5″. A general rule of thumb is the larger your hands, the longer your punch needs to be in order to comfortably control it.

It is generally agreed among the master moneyers I’ve spoken with that anything less than 2″ is too short to be practical. Your fingers will be crowded around the length of the punch, and possibly obscuring your view of the working surface

You’ll want to find a sweet spot of length in which you can comfortably and firmly support the punch, without your fingers obscuring the surface of the coin die when you are lining it up to strike.

If you are cutting your punch stock from longer lengths of metal, start by cutting pieces of material between 2.5″-2.75″ (I recommend you cut it a bit longer than needed, as it will be ground down during shaping). This can be done with a pair of bolt cutters (I’ve cut 5mm music wire this way), or a hacksaw (if you have the patience). Rotary cutting tools such as an angle grinder, Dremel, or chop saw will also work.

Next, the general punch shape is made using the following steps. I personally do the bulk of the shaping on a bench grinder, then finish it on a belt sander, but any sort of grinding tools should work. (See note below if using hand files)

Grind/file down any cut marks, irregularities, metal burrs, etc. on the ends of the punch, making each end flat and level.
- If using nails, cut or grind off the tip of the nail
- If using premade lettering punches, grind off the existing design

Taper one end of the punch until the tip’s diameter is at least 25% less than the body’s.
- The taper should be at least 45 degrees
- The steeper the taper, the better. It makes for significantly less work when shaping the punch head, and gives an easier view of the punch tip when cutting your coin dies.

NOTE: Fully abrasive methods, such as grinders, sanders, and even diamond files, can be used before the punch blanks are annealed. However, if you are limited to metal hand-files, you will want to anneal your stock BEFORE you shape it, otherwise you risk ruining the file’s cutting surface.

Annealing

The final step before carving can begin is to anneal the punch blanks. Annealing is the act of heating up a metal to the point where it loses its hardness. Without this step, if your metal was already hardened you will be unable to shape it with files or gravers, and will likely ruin your tools if you try.

To anneal a punch, heat the tip with a torch till it is at least glowing red, then place it on a heat sinking or heat-resistant surface, such as an anvil or a fire brick (respectively). You can also place the punch headed end down into a cup of sand, which will cause it to cool even slower. Allow the punch to cool completely.

NOTE: A regular brick or a stone countertop is NOT a viable surface for allowing the metal to cool. The heat is strong enough that it can cause the stone to chip and crack.

Once the blank is completely cooled, it is ready to start carving!

Parzival’s Pointers – On the Nature of Punches

I’m going to come out and say this right at the start: Carving punches is probably the most difficult and most time consuming part of the entire moneying process. It requires a great deal of precision to get them “just right”, and sometimes one slip with the file means you have to start the whole thing over again.

For some punch designs, you are working in increments 1/4 mm. I understand how daunting all of this can sound. Just understand that you do not need to start at that scale. Here is my first set of lettering punches.

The bodies are far too long, the taper isn’t nearly steep enough, they aren’t properly proportioned to each other to make good looking letters, and every single one of them is much too tall to do lettering at the scale needed.

I suppose what I am trying to say is that this is one of those times when you shouldn’t forget that everybody has to start somewhere. Yes it’s a bit of a cliche, but it’s true, especially in this case. When it comes to carving punches, there is a definite learning curve. Start off by learning the process at whatever scale you are comfortable with. Once you have that down, then you can work on making them at a smaller scale.

Tools Required (IP)

Benchtop vice (ball vice is preferred)
__
Benchtop magnifier/magnifying loupe
Bench files/mill files
Needle files
Sandpaper (220, 400, 800, and 1000 grit)

Punch Shapes (IP)

__This is by no means a comprehensive library of all punch shapes that can be used for coins. A coin punch can be any design you like. The only limiting factor is your ability to carve it, and partially the overall size (see pointer below)

If there is a particular design that you find yourself needing to do a lot, it will save a lot of time to make a punch specifically for that design rather than piecing it together from basic shapes every time (it will also look much cleaner on the final product).

Parzival’s Pointers – Punch Design Sizes

As much as I would like to say “the only limit is your imagination” when it comes to punches, unfortunately we are also limited by physics. The larger the surface area of your punch, the harder of a strike it will require to impress the image into a coin die. Larger designs are also more prone to show up unevenly if the strike wasn’t on-center.

My personal rule of thumb when it comes to designing punches is that no punch tip should be more than 5 mm across in any direction. Designs that are about as wide as they are tall and have a lot of internal area (for example, the letter “M”) shouldn’t be more than 3 mm across in any direction.

Basic Lettering Punches

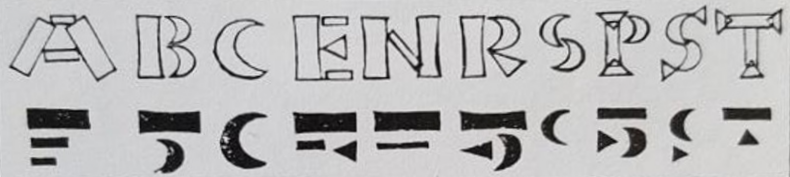

The first set of punches in any moneyer’s kit should be a set of basic lettering punches. The basic lettering punch set is comprised of seven basic shapes that can be used to create letters as well as almost all basic figure work you could expect to do.

___These shapes are:

These shapes can be combined to form any of the 26 English letters. This will be discussed in more detail in my article on die cutting.

NOTE: When making a set of lettering punches, it is important create them at the same scale. Otherwise, the elements will not be able to line up properly to create letters. The simplest way to do this is to use your long stem punch as the measurement benchmark for the rest (ie. the size of the long stem punch will determine the size of the other punches)

Guidelines for Sizing Lettering Punches

Long Stem: 4 times as tall as it is wide
Short Stem/Bar: Half the height and half the width of the long stem
Large Crescent: Same height as the long stem, and half as wide as it is tall
Small Crescent: Same height as the short stem, and half as wide as it is tall
Annulet: Diameter equal to the height of the long stem
Small Triangle: ____
Pellet: ____

For example, these are the dimensions I use in a “standard scale” lettering set, which aims for letters just over 3mm tall.

Long Stem: 2 mm tall, .5 mm wide
Short Stem: 1 mm tall, .25 mm wide
Large Crescent: 2 mm tall, 1 mm wide
Small Crescent: 1 mm tall, .5 mm wide
Annulet: 2 mm in diameter
Small Triangle: ___
Pellet

As a side note, be aware of just how small a scale these punches are___

Additional Basic Punches

___

Advanced Punch Shapes

___

General Punch Carving Techniques

Your basic technique for carving punches is done in two stages: Rough Shaping and Final Shaping.__

There may also be a sanding and/or polishing step between rough and final shaping, depending on the design.__

Rough Shaping

Rough shaping involves using hand files to remove large amounts of material___

Use a pair of calipers to regularly check the dimensions of your punch tip.__ You want to get it to a point where it is about 5-10% larger than your target size. That last percentage will be removed in the final shaping step.

Parzival’s Pointers – Undersizing

When you carve your punches, make them ever so slightly smaller than you want them to appear on your coins. The finishing and polishing steps at the end of the process involve sanding the tip slightly, which will widen the design in all dimensions.

Final Shaping

___

Carving the Basic Lettering Set

Stem

Pellet

Annulet

Crescent

Triangle

Carving from a Matrix

When getting into carving more advanced punch shapes, the usage of a matrix can be a tremendous boon. In short, a matrix is a thick piece of metal that had a design(s) struck or engraved onto its surface, which was then hardened. An annealed punch blank can then be struck with a hammer over one of the impressed designs, which will leave a slight raised design on the surface of the punch.

The design is not clear enough to use as a punch on its own, but it serves as an outline you can follow when cutting your design, rather than having to cut it completely freehand and hope it turns out the way you like.

I am lucky enough to own one of the matrixes tooled off of the punches of Master Ian Cnulle. Similar types of stamping matrices exist, but these are generally considered to be the gold standard by most of the moneying laurels and professionals that I know.

To get an impression from a matrix, take a prepared punch blank and position the end to be carved over the desired design, as close to centered as possible. Holding the blank upright, give the end a single solid strike with a 1-2 lb. hammer.

Once the image is impressed, the process for carving is identical to a freehand carving, filing/graving away material until the outline is exposed.

If the impression wasn’t clear or only partially shows, don’t worry! Once you get part of the design carved out, you can touch-up the impression with another strike. After you have at least one edge of the design carved out (cut all the way to the outline), try lining it back up with the impression on the matrix. If the outline is clean, you will feel the cut area can “slot” into place on the matrix. If you are able to do so

Parzival’s Pointers – Avoiding Punch Shifting

If you are ever doing a matrix strike on an already cut punch, whether to enhance the outline or as a final clean-up, you MUST keep it as still and steady as possible. If the punch shifts at ALL when you move to strike it, the design will likely be messed up and you’ll have to either make corrections or start the whole punch over.

The most common cause of this is a flinching reflex that happens when you bring down the hammer to strike the punch and your fingers tense up. I will not lie, it takes a lot of time and practice to get past this reflex, and primarily just comes with experience.

Another common cause of shifting is when the punch is not held vertically. When the hammer strikes a punch that is at an angle, it has a tendency to slide forward, dragging across the working surface rather than sinking down into the depression.

The best means I have found to minimize the risk of shifting is all in the technique by which you hold the punch.___

This technique also applies when using your punches to punch images into your coin die, so even if you aren’t getting designs off of a matrix it is a valuable technique to learn.

Advanced Punch Carving Techniques

Internal Edges and Corners

Many of the more complicated punch designs, particularly letters, have especially tight corners and inside edges that are difficult to remove by conventional means. My technique for addressing these is:

Cut in as close as you can (without crossing the outline) with a round or knife-edge needle file (fine-toothed, if possible)

Using a round hand graver, gently carve out the material while cutting parallel to the outline’s edge
- I recommend having your hand very slightly rotated towards the inside of the punch (see image). In the event of accidental overcutting or slipping, this orientation will prevent your graver from being directed into design. *PICTURE OF GOOD AND BAD HAND ROTATION*

Remove material by working from the inside to the outside. Make your first cut right up against the outline of the punch design, then work your way further out until the area is cleared.
- Having a slightly rotated hand is also beneficial here. Instead of coming in straight down to remove each line of material separately, use the already cleared space as a guiding channel, and remove the material next to it by coming in from the side. *PICTURE/VIDEO*

When cutting any sort of corner, cut from inside the corner moving out. That way if your graver slips, there’s less risk of overcutting and damaging the design.
- If there is a corner on each end of your line, cut from one corner to the halfway point, then turn the punch around and cut from the other corner to meet your first cut.

Parzival’s Pointers – Graving out Corners

Some tips for cutting out these inside/corner areas, born from a lot of trial and error.

You don’t need to make a super deep cut in these areas (it is extremely difficult to do so with hand tools in the first place). While the outside areas of the punch should fully taper out into the body, the internal areas only need to be as deep as the punch impression will be (about 1/2 mm).
When using a graver on steel at such a small scale, it is better to chip away at the bits of metal you are trying to remove, rather than making full-length cuts. Angle your graver high to dig into the metal slightly, then bring the angle down until you can chip out a fleck of metal. Repeat, moving down the length of the edge.
The planned path of your graver should never have it meeting an edge of the punch design head-on. Sometimes this is unavoidable (like when you have two corners facing each other), but when you can avoid it always having your graver moving either away from or parallel to the borders of your design.

Textures and Surface Details (IP)

___

Making Punches with Punches – Part 2 (IP)

___

Hardening the punch is the most essential part of the process, as it prevents the punches from deforming and makes them give a clear impression when carving a coin die. It is also the most dangerous part of the process, dealing with open heat sources, red hot metal, and the potential for flying shards of metal due to thermal stress. ____

Tools Needed

Metal tongs/pliers
Safety glasses
Heat-resistant work gloves
Heat-resistant surface (such as a fire brick)
Propane/MAP torch (or any other directional heat source that can reach 1,700 F)
Quenching liquid (oil or water, depending on steel type)
Wide-mouthed metal or glass container

Heating to Critical Temperature

In order for the punches to properly harden they must be in the correct temperature range. Too low, and it will not be hard enough and will deform when you begin cutting your dies. Too high, and you risk thermally shocking the metal when you quench it, which can cause it to violently crack or shatter.

The Magnet Test

A classic blacksmithing trick to tell if steel had reached its “critical temperature” (a temperature at which it can be hardened) is to hold or suspend a magnet near the hot metal. When the magnet is no longer drawn to the metal, it has reached critical temperature and can be quenched.

Checking Color

Punch temperature can also be roughly guessed by the color of the glowing metal. If the color is between bright red and bright orange, it should be ready to quench. I personally like to take it past bright red and into orange, for a little extra assurance.

Parzival’s Pointers – Getting up to Temperature

If you are having trouble getting the punch hot enough from the torch alone, try placing it up against a few fire bricks when heating it (see below). Heat that would otherwise be lost to the air is instead absorbed by the bricks, which is reflected back onto the punch.

Quenching

Once the tip of the punch has been brought up to critical temperature, it must be immediately quenched to harden it. ___
